#9 3-Way Switch (Light Between Switches) Name_______________________________ Period___________

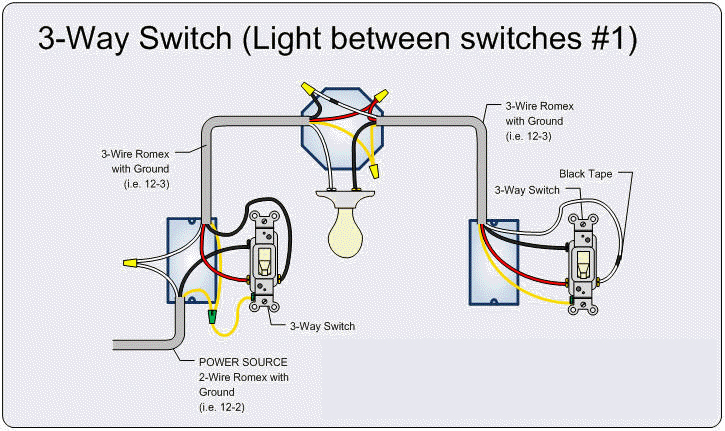

Option #1 is for power into the first switch, then wire to the light, and lastly wired from the light to the other switch. Option #2 is for power into the first switch but then wires run separately from the first switch to the light and from the first switch to the second switch.



3-way
