Residential Wiring Activities

Close Window
#2 Wiring a Light Switch to Multiple Lights Name_______________________________ Period___________

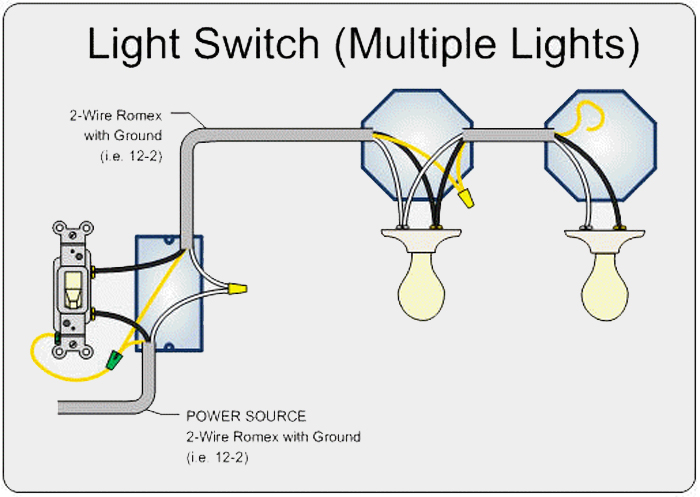

Wiring multiple lights to a single light switch is similar to the basic light switch configuration with the additional light bulbs attached to the first one as shown in the diagram. You can add as many lights in this fashion as need (within the load limit of your wiring/circuit breaker)

Multi lights
